QNAP TS-1263XU-4G,12 Bay ,12 x 3.5-inch SATA 6Gb/s, 3Gb/s,AMD G-Series GX-420MC quad-core 2.0 GHz processor ,4 GB SO-DIMM DDR3L (1 x 4 GB) up to 16 GB (2 x 8 GB) , 2 x SO-DIMM DDR3L ,1 x 10GBASE-T (10G/5G/2.5G/1G/100M),1

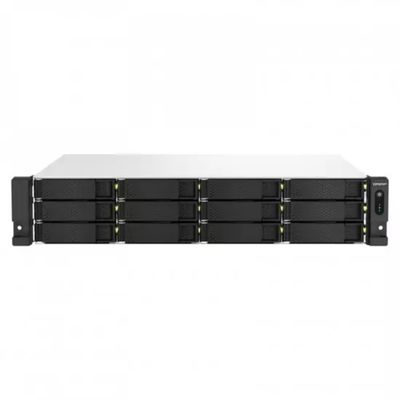

Description Details   TS-1264U-RP-4G Rack NAS with quad-core Intel processor, two 2.5GbE ports and PCIe expansion options for high-speed transmission and virtualization applications Function The TS-1264U-RP is equipped with a quad-core Intel Celeron N5105/N5095 processor (up to 2.9 GHz), two RJ45 2.5GbE ports and a Port Merge feature for combined bandwidth up to 5 Gbps. The integrated HDMI 4K output allows you to view multimedia and virtual machines. Thanks to the PCIe Gen 3 slot, the TS-1264U-RP provides flexibility in expanding NAS functions and allows the installation of various cards: 10GbE/5GbE network cards, QM2 cards for M.2 SSD cache or Edge TPU for image recognition using artificial intelligence. The TS-1264U-RP also supports 256-bit AES encryption, which ensures the confidentiality of sensitive business data without compromising system performance. The TS-1264U-RP also supports a redundant power supply to ensure maximum system uptime. Transmission speeds of up to 5 Gbps can be achieved by setting up port merging using two built-in 2.5GbE ports (2.5G/1G/100M). Install a Gen3 x2 PCIe card and expand the basic features of the TS-1264U-RP, including a 10GbE/5GbE/2.5GbE Multi-Gig network card, a QM2 card, or a USB 3.2 Gen 2 (10 Gb/s) card. Protect your files and data from accidental deletion and malware attacks with snapshots that fully record system and data status. Host multiple container applications to run a wide range of applications and services. Qtier auto-scaling and SSD cache technologies enable constant storage optimization. By connecting QNAP expansion units, you can expand storage capacity to meet growing data needs. PACKAGE CONTENTS TS-1264U-RP Ethernet cable x 1 Power cord x 2 Flat head screw (for 3.5 “HDD) x 48 Flat head screw (for 2.5 “HDD) x 36 Quick Installation Guide (QIG) SPECIFICATIONS CPU Intel Celeron N5105/N5095 4-core/4-thread processor, burst up to 2.9 GHz CPU architecture x86 64 bit Graphics processors Intel UHD Graphics Floating point unit Yes Encryption module Yes System memory 4 GB SO-DIMM DDR4 (1 x 4 GB) Maximum memory 16 GB (2 x 8 GB) Flash memory 4 GB (dual OS protection at startup) Disk drive bays 12 x 3.5 “SATA 6 Gb/s, 3 Gb/s Disk drive compatibility 3.5 “position: 3.5 “SATA hard disk drives 2.5 “SATA hard disk drives 2.5 “SATA SSD Hot swappable Yes SSD cache acceleration support Yes Gigabit Ethernet port (RJ45) 2 (2.5GbE) Jumbo frame Yes USB ports USB 2.0: 2 USB 3.2 Gen 2: 2x Type A HDMI output 1, HDMI 1.4b Form factor 2U with rack mounting LED indicators HDD 1-12, status, LAN, expansion, power supply Buttons Power supply, reset Dimensions (H x W x D) 88.7 × 482.2 × 423.8 mm Weight (net) 9.43 kg Weight (total) 14.09 kg Operating temperature 0 – 40 ° C (32 ° F – 104 ° F) Relative humidity Relative humidity 5 to -95%, no condensation, wet bulb temperature: 27 ° C (80.6 ° F) Power supply unit 300 W (x 2), 100–240 V Ventilator 2 x 80 mm, 12 V DC System warning Buzzer Max. number of concurrent connections (CIFS) 1500
