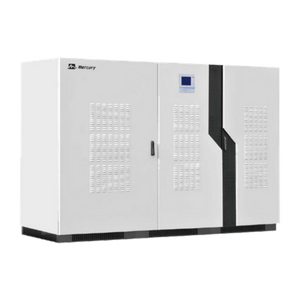

Description Mercury Online UPS EP ONLINE DOUBLE CONVERSION A Double-Conversion Online UPS provides the highest level of power protection to the equipment/ machinery. It offers an electrical firewall between the incoming utility power and sensitive equipment and completely isolates the output from all input anomalies through its double-conversion design. With zero transfer time, they ensure maximum availability and performance for large/medium Computer Data Centers, Industrial Processes, and other mission-critical equipment. Mercury Online UPS EP 10 to 800KVA 3:3 Phase Specifications • Self-diagnosis • Double CPU control • LCD with control panel • Wide input voltage range • Static bypass technology • Manual maintenance bypass • Network management function • Non-fixed master/slave parallel • Parallel connection up to 6 units • Advanced battery management • Double conversion online technology • Automatically convert to constant current • Constant voltage and charging technology • Full protection against over-discharge overcharge/overload Input Nominal Voltage 380 / 400 / 415VAC (-25%~ 20%), (3Ph N PE) Frequency of 50/60Hz±5% Phase 3 Phase 4 Wire & Ground Rectifier 3 Phase 6 Pulses / 12 Pulses Power Factor ≥0.8 (6 Pulse), ≥0.85 (12 Pulse) Output Rating Voltage 380 / 400 / 415VAC (Optional) Phase Voltage Setting 200~244VAC (Control panel) Transient Response ±5%, 20ms Frequency of 50/60Hz±0.05% THDv Load>3% (Linear load) Overload Load<110%, 60 mins, Load<125%, 10 mins, Load<150%, 1 min Crest Factor 3: 1 (Max) Waveform Pure Sinewave Short Circuit Current Short current for 0.1 sec (200% Current) Battery Model Maintenance-free lead-acid cell DC Voltage 10KVA~400KVA 384VDC, 500KVA 480VDC Bypass Type Static state Manual maintenance bypass Input Voltage Range 20% to -40% (Software settable) Input Frequency Range Default ±10% (±2.5%~±20% Software settable) Transfer Time Inverter/Bypass: 0ms (Synchronized), Inverter/Bypass: 15ms (Not synchronized) Communication Interface RS485, RS232, SNMP card (Optional) System Features Remote Signaling Dry Contact, Battery low, Battery discharging, Bypass, Fault, 12VDC/80mA Remote Control EPO to Bypass Temperature 0˚C~40˚C Humidity Less than 95% (Without condensing) Altitude 1000m Output nominal power (With the increase of 100m, It will reduce the output of 1%) Max 2000m Noise at 1M Less than 60dB Inverter Efficiency 10KVA~40KVA: ≥90% Optional Isolation transformer, Harmonic filter, Parallel units up to 6 Physical Dimensions (WxDxH) (mm) 10KVA~40KVA : 570 x 800 x 1195 54KVA~72KVA: 880 x 760 x 1600 100KVA~120KVA: 1160 x 805 x 1600 (6P) 160KVA~200KVA: 1400 x 945 x 1900 (6P) 300KVA~400KVA: 1640 x 1040 x 1900 (6P) 500KVA~600KVA: 2800 x 1040 x 1900 (6P) 800KVA: 3900 x 1100 x 1950 (12P) Models/Capacity/Power Models EP 10/EP 20/EP 30/EP 40/EP 60/EP 80/ EP 100/EP 120/EP 160/EP 200/EP 300/ EP 400/EP 500/EP 600/EP 800 Rating Capacity 10KVA/20KVA/30KVA/40KVA/60KVA/ 100KVA/120KVA/160KVA/200KVA/ 300KVA/400KVA/500KVA/600KVA/ 800KVA Rating Power 9kW, 18kW, 27kW, 36kW, 54kW, 72kW, 90kW, 108kW, 144kW, 180kW, 270kW, 360kW, 450kW, 540kW, 720kW
