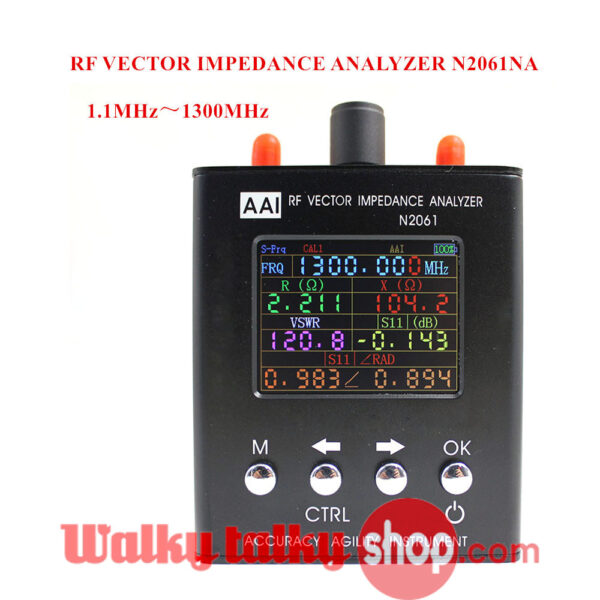

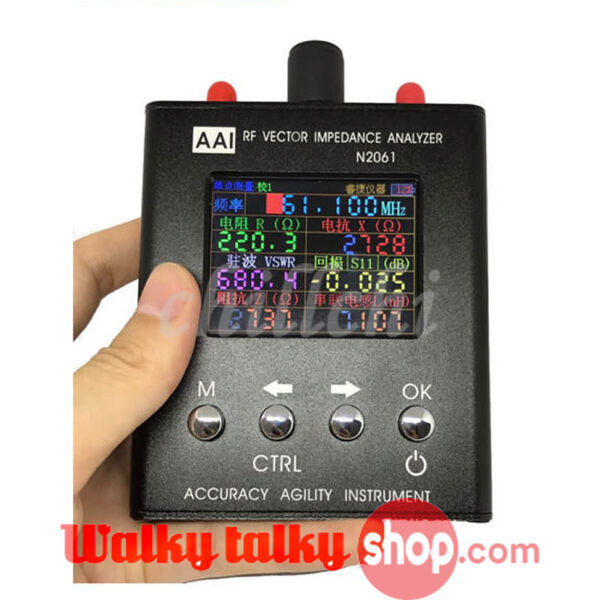

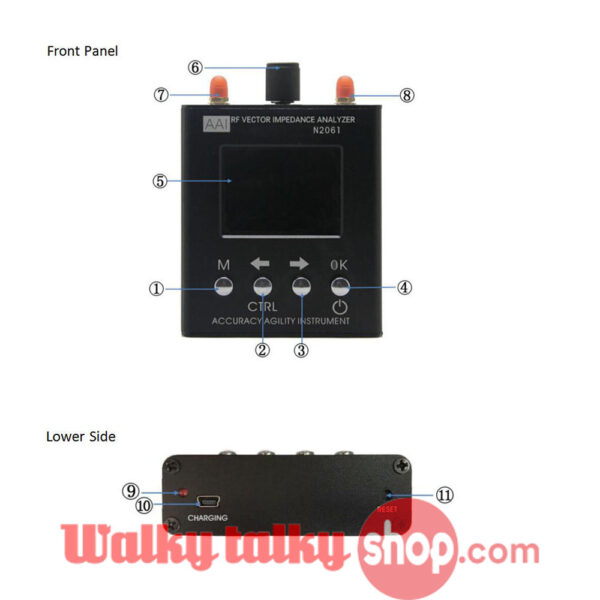

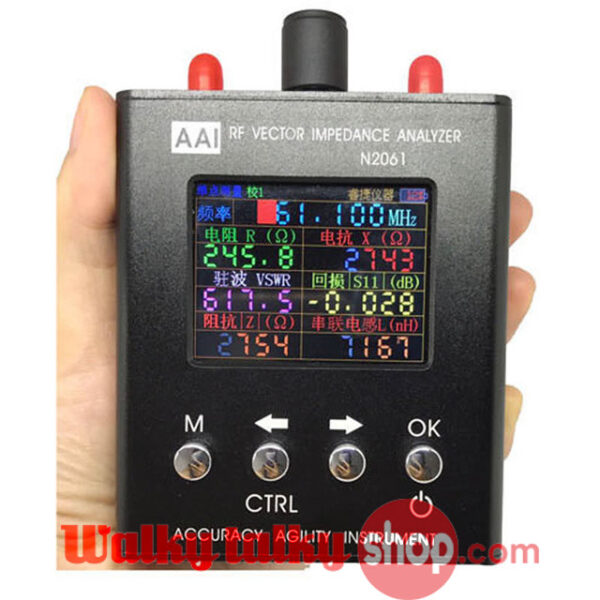

Short Wave Antenna Analyzer 1.1MHz~1300MHz Frequency Range Resistance/Impedance/SWR/S11 N2061SA N2061SA Short wave Antenna Analyzer Specifications(NEW Upgraded Version ) S11 working Frequency            1.11MHz~1300MHz S21 working  Frequency           1.11MHz~600MHz Spacing                                    1kHz Display                                      2.4inch TFT Pixel 320×240(QVGA) Battery                                      2000mAH(7.4Wh) Power dissipation                     <1.5W Charging current                      400mA Charging port                           USB(For charging only) Auto Power Off                        Adjustable(Always on，5mins～60min) Measure facts                          resistance/reactance/SWR/s11 Resolution ratio                       4bits effective digits Frequency accuracy                ±5ppm Connector SMA-K Measuring range                    impedance   0.1Ω~1000Ω(Absolute value of impedance) SWR              1.000~65 s11(dB)         0dB~-60dB   Error (single point measurement)          impedance    <Absolute value of impedance×3%±0.1Ω（Z<200Ω，<1.5GHz） SWR               <Effective reading×10%±0.1 s11 （dB/°）   0.1 dB /5° (0dB~-10dB) 1 dB /10° (-10dB~-20dB) 5dB/20° (-20dB~-40dB) directivity                              <35dB(140MHz~2GHz After calibration) <30dB(2GHz~2.7GHz) Scan Points                          280 output level                          -18dBm Working temperature           0~40 Atmospheric pressure         860hPa~1060hPa Dimension                           120mm*86mm*30mm   Description This instrument  has  four interfaces: single point measurement, scanning, system information, correction and calibration The default boot into single-point measurement interface. Note: For the convenience of the user, each time calibration correction options will automatically change to the user calibration. Meanwhile, in order to ensure the integrity of the calibration, the calibration process, the automatic shutdown function fails, the consistent boot.   Startup and shutdown Hold down the CTRL key off press the power switch button. The boot state, long press (2S above) the switch button, after the release, the instrument will shut down The boot state, long press (2S above) the switch button, after the release, the instrument will shut down   Recommend the use 1, in order to ensure the accuracy of measurement and calibration, preheat the instrument at least 15 minutes. 2, try to use good quality RF cable and connectors. 3, calibrated cable marked to the next may not need to calibrate and direct use. 4, test cable process affect the measurement accuracy, it is recommended that, where possible, do not choose too long test cable. 5, measurement and calibration before, make sure you are not in a strong wireless signal, so as to avoid interference caused by inaccurate measurements. 6, if the impedance measurements themselves do not understand, you can refer to a vector network analyzer instructions and tutorials. This instrument is equivalent to a single-port vector network analysis.   Package included: 1 x N1201SA Antenna Analyzer 1 x USB Cable 1x English Manual        Sale! Sale! Add to cart Get a Quote Antenna Analyzer High Quality Short Wave Antenna Analyzer 1.1MHz~1300MHz NEW Upgraded English Version N2061SA $398.00 Original price was: $398.00.$269.00Current price is: $269.00. Add to cart
