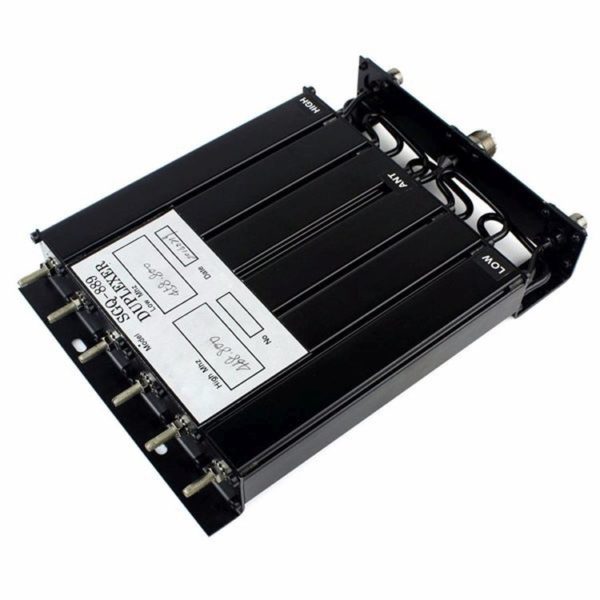

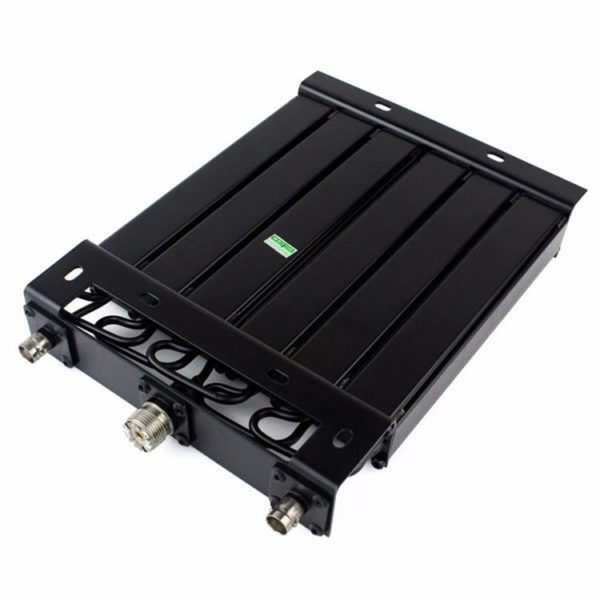

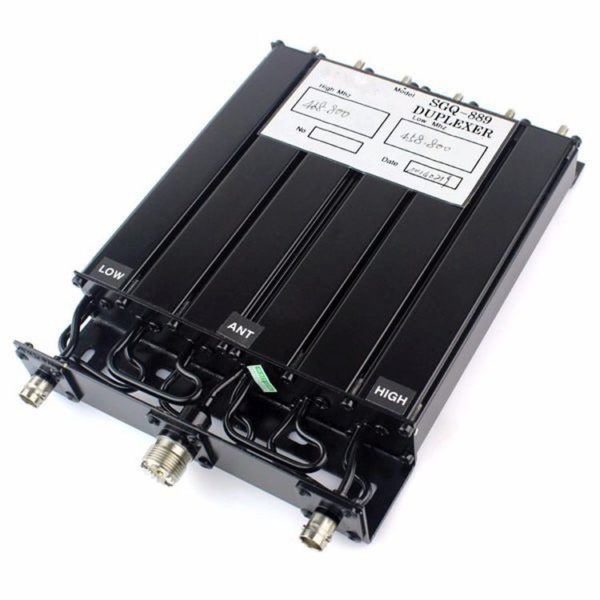

25W UHF Motorola Kenwood ICOM Radios Base Repeater Duplexer N-Connector    Notice: Please make note what frequency you want (High/Low) after you pay it. So that we can set it before ship out. For example: 458.800MHz – 468.800MHz.   Specifications: 25W RF power Handling 6 cavity Design Maximum Tx and Rx frequency difference: UHF 10Mhz Power Isolation >75dB Power loss <1dB Nominal impedance: 50 V.S.W.R: <1.5 Easy to build your repeater Support Frequency: UHF Free Frequency Tuning – send me the high / low frequency N connector Fit for Motorola Repeater Enclosurer Weight: 1.2Kg Size: 155mm x 225mm x 35mm   Package content 1 x 25W UHF 6 Cavity Duplexer for Radios Repeater N-connector Views: 2
