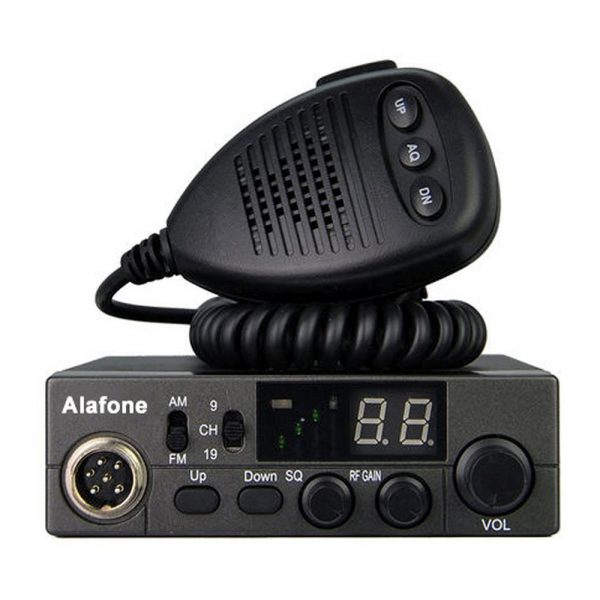

Alafone ALF298 High Quality 26MHz -27MHz Amateur AM FM CB Radio​ AM/FM 10m Radio Home CB Radio​ CE 4W 27 MHZ CB Radio Mobile Radio ​Two Way Base Station Transceiver AM FM Mobile Radio CB Base Station Radio 100mile Walkie Talkie 27MHz 12V/24V AM FM CB Radio Two Way Base Station Transceiver AM FM Mobile Radio CB Base Station Radio Feature: Stable quality as LEGEND II; 4W RF power 40 AM/FM channels Channel 9 and channel 19 switch Mode AM/FM switch With adjustable ASQ RSSI indication (4-digit LED indication) 2 Digit channel indication RF gain control Volume with power ON/OFF control TX/RX LED indication Up/Down microphone Front microphone plug Jack for external speaker Manual Squelch ANT Connector FREQ. expanding (A,B,C,D,E,F,POLAND and NZ band) Specifications: GENERAL Channels 40 AM/FM Frequency range 26.960-27.400MHz Frequency control P.L.L. Operating temperature -20°/ 55°C DC input voltage 13.8Vdc ±15% Size 115 (L) x 38 (A) x 150 (P) mm Weight 0.8 kg RECEIVER System CPU controlled Double conversion super IF 1° 10.7 MHz / 2° 450 KHz Sensitivity -120dBm for 12dB SINAD (FM) -107dBm for 12dB SINAD (AM) Audio output @10% THD 2.5W at 8 ohm Audio distortion <8% at 1 KHz Image rejection 65dB Adjacent channel 85dB Signal ise ratio 45dB Current drain 220mA (stand-by) TRANSMITTER System CPU controlled P.L.L. synthesizer Maximum RF power 4W at 13.8Vdc Modulation 85% to 90% (AM) 1.8 KHz ±0.2 KHz (FM) ANT impedance 50 ohm unbalanced Current drain 1500mA (at no modulation) Package Included: 1*CB Mobile Radio 1*Microphone 1*Bracket 1*Screw set 1*Manual in EN
