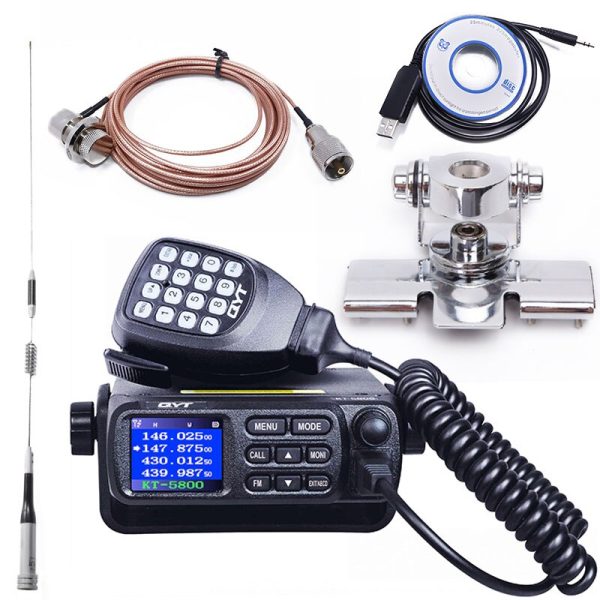

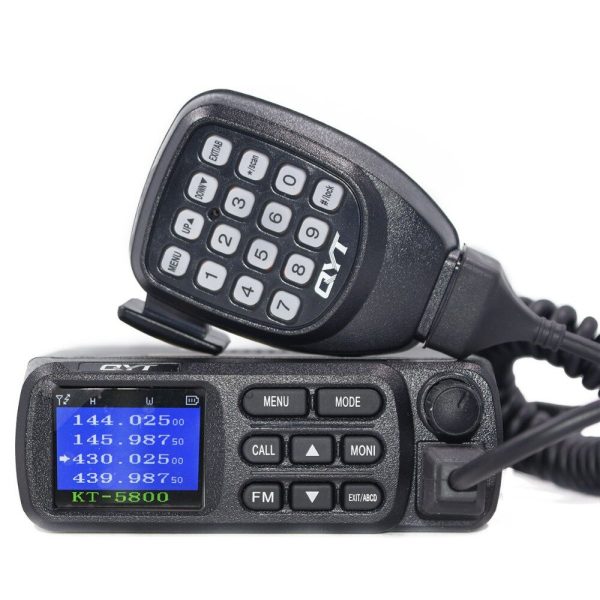

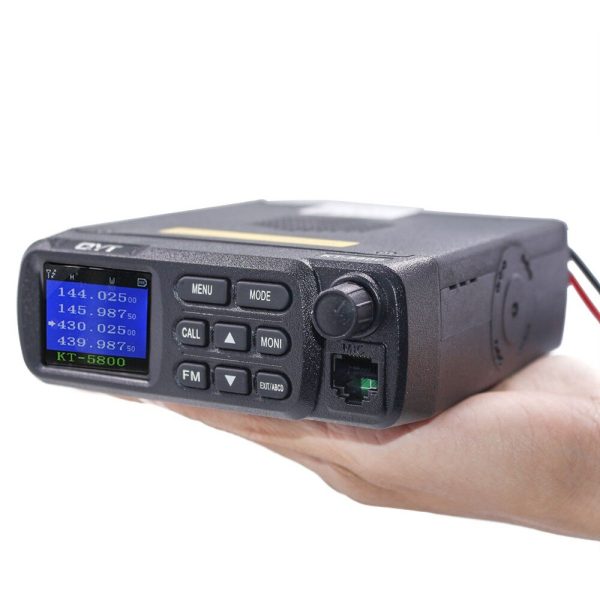

QYT KT-5800 Mobile Radio 12/24V Truck Mini Walkie Talkie Quad Display 25W Dual Band UHF VHF Car Radio The QTY KT-5800 is 12/24V, So you can connect to the TRUCK/CAR directly without additional transformer  QYT KT-5800 12/24V Dual Band Quad-Standby Color Screen 25W VHF UHF Mini Car Ham Radio Mobile Transceiver Truck Features: 12/24V, Can connect to the TRUCK/CAR directly without additional transformer Dual Band,Quad-standby 25W Output Power External speaker/PTT Mini Size PC Program Remote Stun,Remote Activate,Remote Kill DTMF Function, 2 tone, 5 tone PTT-ID Code Repeater Function Long-distance Communication FM Radio Alarm Function Monitor Specifications: Item number KT-5800                                                  General Frequency Range VHF:136-174MHz   UHF:400-470MHz Number of Channel 200 Channel Spacing 25KHz 20KHz 12.5KHz Phase lock step 5KHz, 6.25 KHz, 10 KHz ,12.5 KHz, 15 KHz, 25 KHz Working Voltage 13.8V DC or 24V DC Squelch way CTCSS/DCS/5Tone/2Tone/DTMF Frequency Stability  ±2.5ppm Operating Temperature -20c~ 60c Dimension(W x H x D) 123(W) x 44(H) x 158(D)mm Weight 1.2KG                                                   Receiver   Broadband Narrow band Sensitivity ≤ 0.25μV ≤ 0.35μV Channel choice ≥70dB ≥60dB Intermodulation ≥65dB ≥60dB Spurious Rejection ≥70dB ≥70dB Audio response 1~ -3dB(0.3~3KHz) 1~ -3dB(0.3~2.55KHz) Signal to noise ratio ≥45dB ≥40dB Audio distortion ≤5% Audio output power ≥2W                                                 Transmitter   Broadband Narrow band Output power 25W/20W(VHF/UHF) Modulation Mode 16KΦF3E 11KΦF3E Channel Power ≥70dB ≥60B Signal to noise ratio ≥40dB ≥36dB Parasitic harmonic ≥60dB ≥60dB Audio response 1~ -3dB(0.3~3KHz) 1~ -3dB(0.3~2.55KHz) Audio distortion ≤5% Each Set Package Contain: 1× QTY KT-5800 Dual Band Mini Mobile Radio  1× Microphone 1× Car Power Cable  1× Clip for Speaker Microphone  1× Mounting Bracket  1× Screw Sets 1 × User Manual  Add USB Programming Cable: Add Bluebooth Speaker Mic: As pic show 1: As pic show 2: As pic show 3:
