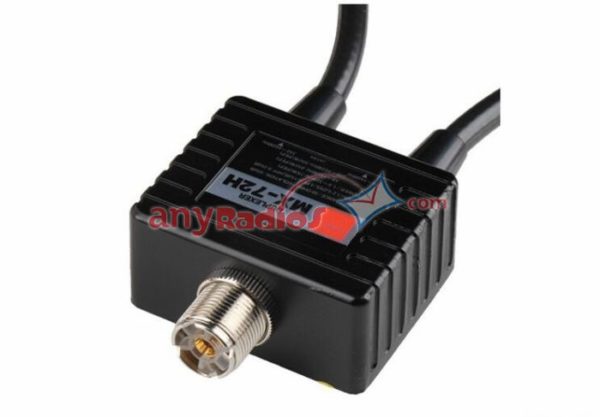

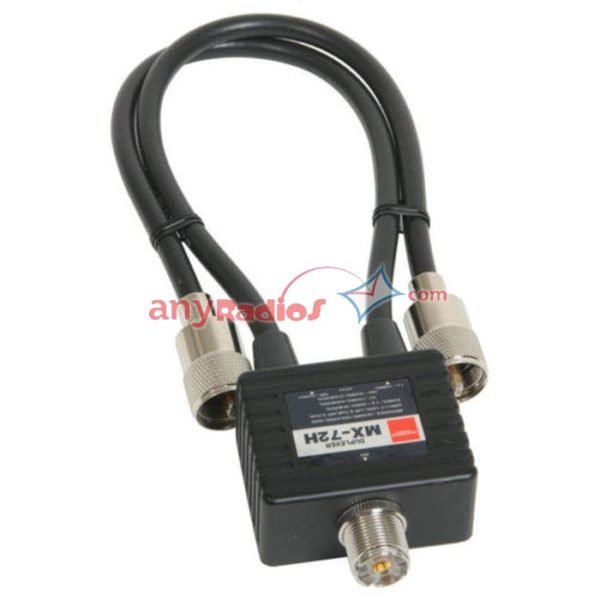

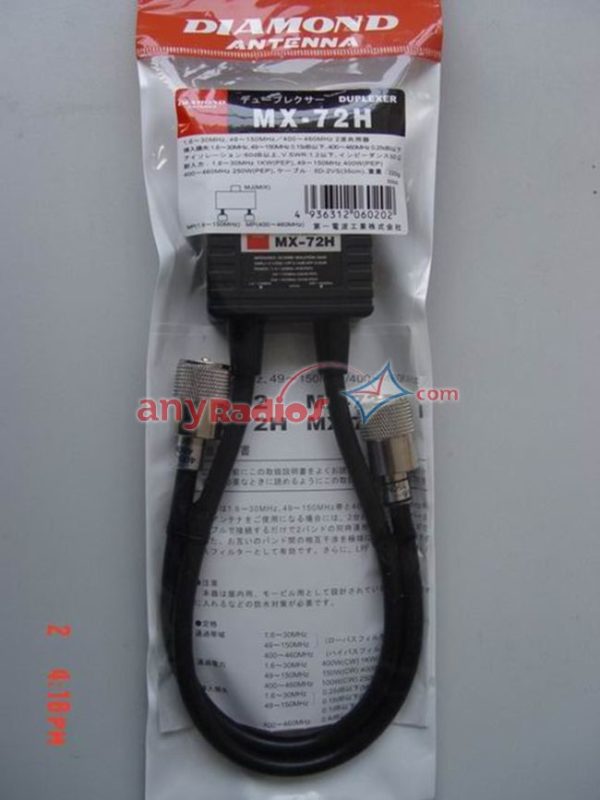

Antenna Dual Band Combiner MX-72H Diamond VHF-UHF Duplexer MX-72H Diamond VHF-UHF Duplexer  Diamond duplexer feature quality aluminum construction and black finish (not designed for outdoor use) DUPLEXER WITH TWO OUTPUTS (OP-1 /OP-2) AND ONE INPUT:  SO-239 (1.6-460MHz) OP-1: 1.6- 150MHz (PL-259) OP-2: : 400-460MHz (pl-259) MAX POWER: 400W (PEP)   Specification: MX72H Diamond: HF 144/430MHz Dimensions(mm):46 Wx25 Hx57 D Weight:220g Frequency:LPF/1.6 to 30MHz 49 to 150MHz,HPF/400 to 460MHz (LPF:1.6 to 225MHz,HPF:340 to 1000MHz receiving only) Power rating:1.6 to 30MHz:400W(CW)/1kW(PEP), 49 to 150MHz:150W(CW)/400W(PEP), 400 to 460MHz:100W(CW)/250W(PEP) Insertion loss:LPF/Less than 0.15dB,HPF/Less than 0.25dB Isolation:LPF:More than 60dB Impedance:50ohms / VSWR:Less than 1.2:1 Connector:(MIX)M-J/(144)M-P/(430)M-P Coaxial cable:5D-2VS(35cm) Package included: 1* MX-72H Diamond Dual Band Combiner
