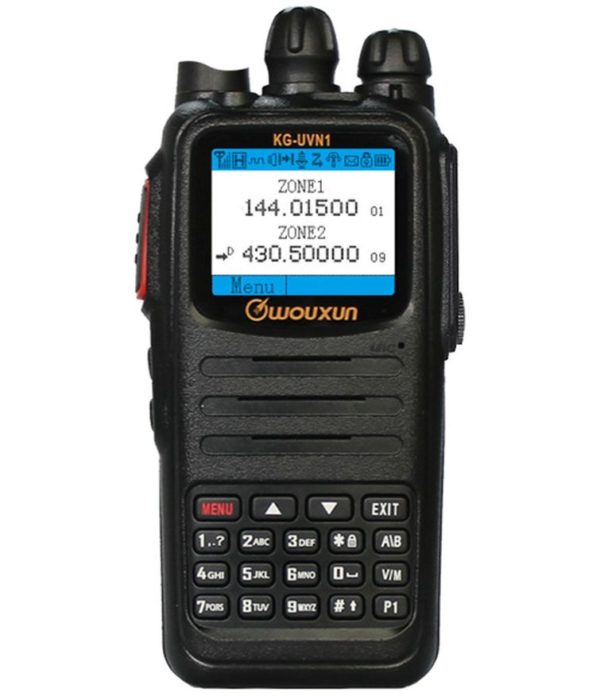

In Stock Wouxun KG-UVN1 DMR Ham Radio Wouxun KG-UVN1 Dual Band Digital FM Tier II DMR Pure VHF / UHF Amateur Walkie Talkie  Ham Two Way Radio   Features: 3072 Channels 1024 Contacts 255 Receiving Groups 250 Zones 16 Scan List Radio ID Radio TX Contacts Duan Band and Dual Display Radio Color Code Support Frequency Mode Program Key Digital Voice Encryption Emergency Alarm VOX Function Priority Channel Scan TX Designated Channel Low Battery Power Off One Touch Access / Talk Around Radio Program Password Menu Encryption or Menu Hide Power Save Mode Group Scan Tail Elimination Text Message Radio Disable or Enable Lone Work ARTS Function Flash Light Call Alert CTCSS Encoding and Decoding , Support Non Standard Digital Channel Recording , Continuous Record 8 Hours Play Recording File Customerized Radio Interface DTMF Encoding and Decoding Transmit Time-out Alert FM Radio Fimware Upgradable   TECHNICAL SPECIFICATION Intergration    Frequency Range 136-174MHz , 400-480MHz , (FM) 65-108MHz    Channel Number 3072    Operating Temperature -20℃～ 40℃    Antenna Resistance 50Ω    Working Voltage 7.4 VDC    Weight 300 g    Size 64 x 41 x 130 (mm)   Receiver    Analog Receive Sensitivity 0.25µV@12dB SINAD    Digital Receive Sensitivity 0.25µV(BER:5%)    Adjacent Channel Selectivity ≤[email protected]    Audio Response 1dB~-3dB    Audio Distortion ≤5%    Audio Power 1W    Inter Modulation ≥65dB   Transmitter    FM Modulation 12.5KHz : 11KOF3E , 25KHz : 16KOF3E    4FSK Digit Modulation 12.5KHz(Data Only) : 7K60FXD 12.5KHz(Data Voice) : 7K60EXE    Adjancent Channel Power ≤-60dB    Frequency Stability ±1 PPM    Audio Distortion ≤5%    Vocoder Type AMBE 2TM    Audio Response 1dB~-3dB    Digital Protocol ETSI-TS102 , 361-1 , 361-2 , 361-3    Bit Error Ratio ≤5%    Modulation Limit ±[email protected]    Output Power UHF (H : 4W , L : 1W) , VHF (H : 5W , L : 1W)   Each Unit Package Contain: 1 x Wouxun KG-UVN1 DMR Transceiver 1 x BLO-022 Li-ion Battery Pack, 2600mAh 1 x CHA-025 Charger with Power Supply Adaptor 1 x ANO-033 Antenna 1 x OTH-005 Hand Strap 1 x OTH-001 Belt Clip 1 x PTT Earpiece
